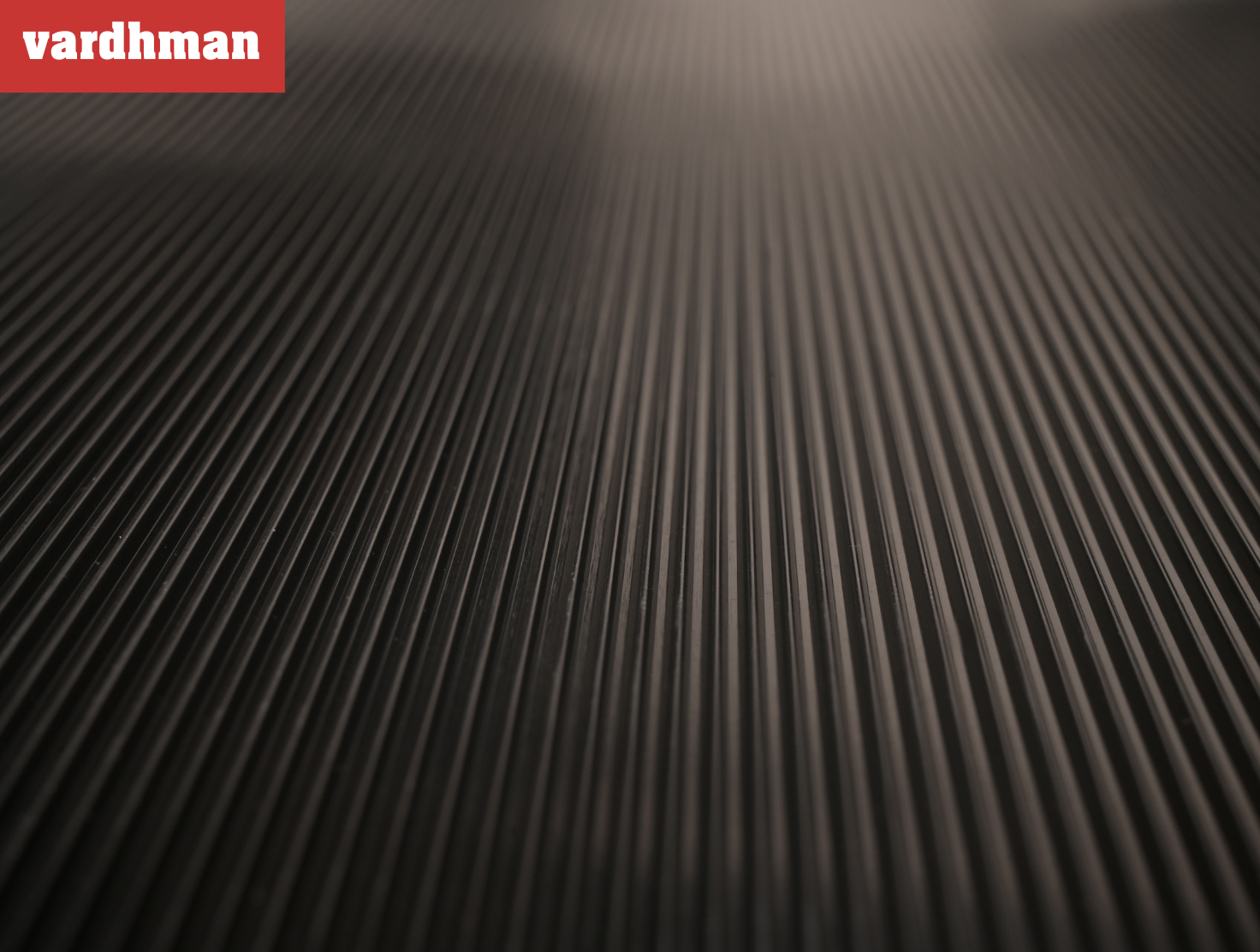

Insulation Matting ASTM-D-178

Vardhman Insulation Matting ASTM-D-178 is a premium grade electrical insulating material designed specifically for high voltage protection applications. These mats provide essential electrical safety for personnel working in environments with potential electrical hazards.

Our ASTM-D-178 compliant insulation matting is manufactured using advanced rubber compounding technology, ensuring superior dielectric properties and long-term reliability. These mats are essential safety equipment for electrical maintenance, testing, and live working operations.

Vardhman's Insulation Matting meets the rigorous ASTM D-178 standard specifications for electrical insulating materials, providing reliable protection against electrical shocks and ensuring workplace safety in high voltage environments.

With over 25 years of experience in electrical safety equipment manufacturing, Vardhman ensures that every piece of ASTM-D-178 insulation matting undergoes comprehensive testing to meet international safety standards.

Talk to Our Experts

Download Brochure

Applications

ASTM-D-178 Insulation Matting is primarily used in electrical substations, power plants, industrial facilities, and commercial buildings where electrical equipment maintenance and operation require enhanced safety measures.

These mats are essential for protecting workers during electrical testing, maintenance procedures, and live working operations where direct contact with energized equipment may occur.

Features and Benefits

Compliant with ASTM D-178 standard specifications
Superior dielectric strength and electrical resistance
Excellent mechanical properties and durability
Resistant to moisture, oil, and chemical exposure
Anti-slip surface for enhanced safety
UV and ozone resistant for outdoor applications
Flame retardant properties
Low maintenance and long service life
Available in various thicknesses and sizes
Easy to clean and maintain
Environmentally friendly materials
Cost-effective electrical safety solution

Technical Specifications

Property	Technical Specification	Test Method
Dielectric Strength	Minimum 20 kV/mm	ASTM D-149
Volume Resistivity	Minimum 10¹² ohm-cm	ASTM D-257
Tensile Strength	Minimum 8 MPa	ASTM D-412
Elongation at Break	Minimum 200%	ASTM D-412
Hardness (Shore A)	60-80	ASTM D-2240
Water Absorption	Maximum 2%	ASTM D-570
Flame Resistance	Self-extinguishing	ASTM D-635
Operating Temperature	-40°C to +85°C	-

Dimensions and Sizes

Standard Dimensions
Thickness	3mm, 5mm, 6mm, 8mm, 10mm
Width	0.9m, 1.0m, 1.2m, 1.5m
Length	2m, 5m, 10m, 20m (Custom lengths available)
Colors	Black, Grey, Blue, Red (Other colors on request)
Surface Finish	Anti-slip textured, Smooth, Diamond pattern

Quality Assurance

S.No.	Quality Parameter	Assurance Method
1	Material Composition	100% virgin rubber compound, no recycled materials
2	Electrical Testing	Every batch tested for dielectric strength and resistivity
3	Physical Properties	Regular testing for tensile strength and elongation
4	Dimensional Accuracy	Precision cutting and measurement verification
5	Surface Quality	Visual inspection for defects and surface finish
6	Packaging	Proper packaging to prevent damage during transit

*Specification are subject to change without prior notice.

Note: Custom sizes and specifications can be manufactured according to specific requirements. Contact us for special orders.

Installation and Maintenance

Proper installation and regular maintenance are essential for optimal performance and safety:

Important Guidelines:

Ensure clean, dry surface before installation
Inspect mats regularly for signs of wear or damage
Clean with mild soap and water, avoid harsh chemicals
Store in cool, dry place away from direct sunlight
Replace immediately if any damage is detected
Follow manufacturer's recommendations for specific applications
