Electrical Insulating Mat - ISI Marked IS:15652

Electrical Insulating Mat - ISI Marked IS:15652

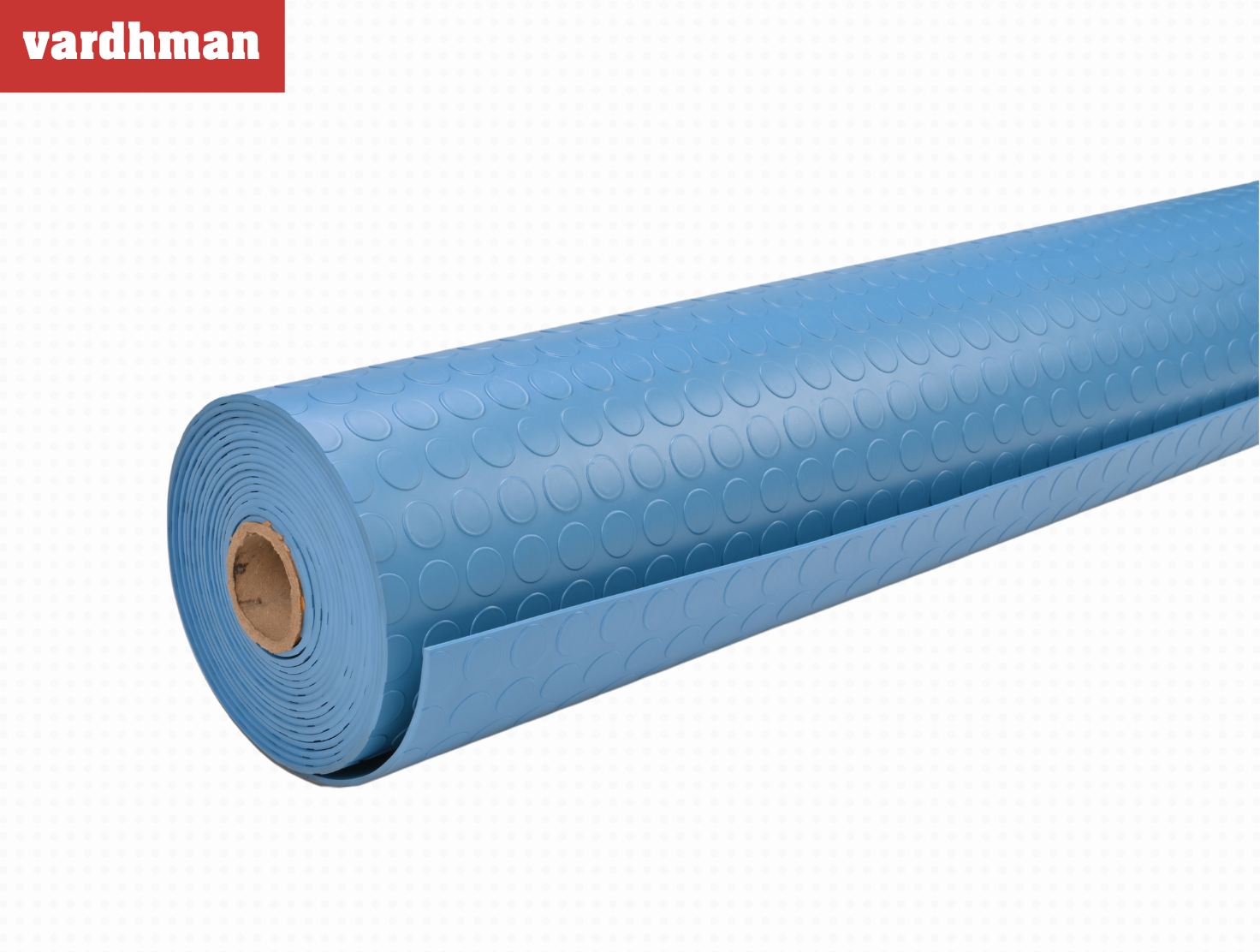

Vardhman High Voltage Electrical Insulating Mat - ISI Marked IS:15652 is considered as personal protection equipment(PPE), it is specially designed for use in front of open switchboards or high voltage equipment. Used in many Industrial Plants and Factories to protect against electrical shocks. Vardhman is manufacturing Electrical Insulating Mat - ISI Marked IS:15652 in India, since 1996.

Talk to Our Experts
Download Brochure
Our Features:
  • ISI Marked, ERDA & CPRI Type Tested insulating mats.
  • Tests and specifications also meet BS 921, IEC 61111, ASTM.
  • For both A.C. and D.C. applications.
  • Di-electric Strength 65KV (650000volts).
  • AC proof Voltage up to 36KV.
  • Low Temperature resistant.
  • Acid, Alkali, Diesel & Transformer oil resistant.
  • Flame Retardant.
  • Good Aging properties
  • High Insulation resistance exceeding 1100000 MΩ.
  • High tensile strength and elongation properties.
  • Leakage Current less then 1mA.
Vardhman® Electrical Insulating Mat - ISI Marked IS:15652 are exported world-wide.
Dimensions
Form Rolls or Mat
Length 5M/10M/20M
Width 3ft(900mm)1M
Color(*Other colors as per request) RED/BLACK/BLUE/GREY
Thickness 2mm, 2.5mm, 3mm
*We can supply the Electrical Insulating Mat - ISI Marked IS:15652 in any length and width as per customer requirement.
Technical Specification
S. No. Specification Class A Class B Class C
1 Thickness 2.0 mm 2.5 mm 3.0 mm
2 Max. use Voltage 3.3 KV 11 KV 33 KV
3 Ac Proof Voltage 10 KV 22 KV 36 KV
4 Ac Di-electric Strength 30 KV 45 KV 65 KV
5 Max. Leakage Current 10 mA 10 mA 10 mA
6 Min. Insulation resistance measured by 5000 V megger 1,00,000 M Ω 1,00,000 M Ω 1,00,000 M Ω
7 Min. Tensile Strength (N/MM2) 15 15 15
8 Min. Elongation (%) 250 250 250
9 Minimum Retention in Tensile and Elongation from Original Value on Aging at 70±1°C for 168 hrs T.S-Min.75% T.S-Min.75% T.S-Min.75%
EL.-Min.75% EL.-Min.75% EL.-Min.75%
10 Minimum Retention in Tensile and Elongation strength from Original Value when immersed in Acid/Alkali/Diesel/Transformer Oil for 48 Hrs T.S-Min.80% T.S-Min.80% T.S-Min.80%
EL.-Min.80% EL.-Min.80% EL.-Min.80%
11 Low Temperature Resistance yes yes yes
12 Flame Retardance yes yes yes
13 Composition Synthetic Elastomer Synthetic Elastomer Synthetic Elastomer
*TOLERANCE AS PER STANDARDS ARE APPLICABLE / CUSTOMISED END CONNECTION / FITTINGS ON REQUEST

*Specification are subject to change without prior notice.

Note:
  • Mats shall be ISI Marked at every meter with unique CM/L No.
  • Mats shall be Type Tested by ERDA.
  • Mats shall be pastable type. Pasting / Fixing or request.
  • Inspection facilities are available.
  • In-house test certificate along with supply
  • Mats shall be replaced on first sign of any damage.
